Rear Vision Camera (RVC) The vehicle may have a Rear Vision Camera (RVC) system. Read this entire section before using it. The RVC system can assist the driver when backing up by displaying a view of the area behind the vehicle.

{ WARNING

The Rear Vision Camera (RVC) system does not replace driver vision. RVC does not:

. Detect objects that are

outside the camera's field of view, below the bumper, or underneath the vehicle.

. Detect children, pedestrians,

bicyclists, or pets.

(Continued)

WARNING (Continued)

Do not back the vehicle by only looking at the RVC screen, or use the screen during longer, higher speed backing maneuvers or where there could be cross-traffic. Your judged distances using the screen will differ from actual distances. If you do not use proper care before backing up, you could hit a vehicle, child, pedestrian, bicyclist, or pet, resulting in vehicle damage, injury, or death. Even though the vehicle has the RVC system, always check carefully before backing up by checking behind and around the vehicle.

Driving and Operating

9-43

Vehicles Without a Navigation System When the vehicle is on and the driver shifts into R (Reverse), the video image automatically appears on the inside rearview mirror. Once the driver shifts out of R (Reverse), the video image automatically disappears from the inside rearview mirror.

Turning the Rear Vision Camera System Off or On To turn off the RVC system, press and hold z, located on the inside rearview mirror, until the left indicator light turns off. The RVC display is now disabled. To turn the RVC system on again, press and hold z until the left indicator light illuminates. The RVC system display is now enabled and the display will appear in the mirror normally.

Cadillac SRX Owner Manual - 2011

Black plate (44,1)

9-44

Driving and Operating

Turning the Rear Vision Camera System On or Off To turn the rear vision camera system on or off: 1. Shift into P (Park). 2. Press the CONFIG button. 3. Select Display.

Vehicles With a Navigation System An image appears on the navigation screen with the message “Check Surroundings for Safety” when the vehicle is shifted into R (Reverse). The navigation screen goes to the previous screen after approximately 10 seconds once the vehicle is shifted out of R (Reverse). To cancel the delay, do one of the following: . Press a hard key on the

navigation system. . Shift into P (Park). . Reach a vehicle speed of

8 km/h (5 mph).

Symbols The navigation system may have a feature that lets the driver view symbols on the navigation screen while using the rear vision camera. The Ultrasonic Front and Rear Parking Assist (UFRPA) system must not be disabled to use the caution symbols. The error message “Rear Parking Assist Symbols Unavailable” may display if UFRPA has been disabled and the symbols have been turned on. See Ultrasonic Parking Assist on page 9‑40. The symbols appear and may cover an object when viewing the navigation screen when an object is detected by the UFRPA system.

4. Select Camera. When a

checkmark appears next to the Camera option, the RVC system is on.

Cadillac SRX Owner Manual - 2011

Black plate (45,1)

To turn the symbols on or off: 1. Shift into P (Park). 2. Press the CONFIG button. 3. Select Display. 4. Select Symbols. When a

checkmark appears next to the Symbols option, symbols will appear.

Guidelines The RVC system has a guideline overlay that can help the driver align the vehicle when backing into a parking spot.

To turn the guidelines on or off: 1. Shift into P (Park). 2. Press the CONFIG button. 3. Select Display. 4. Select Guidelines. When a

checkmark appears next to the Guidelines option, guidelines will appear.

Rear Vision Camera Error Messages SERVICE REAR VISION CAMERA SYSTEM: This message can display when the system is not receiving information it requires from other vehicle systems. If any other problem occurs or if a problem persists, see your dealer.

Driving and Operating

9-45

Rear Vision Camera Location

The camera is located above the license plate. The area displayed by the camera is limited.

Cadillac SRX Owner Manual - 2011

Black plate (46,1)

9-46

Driving and Operating

It does not display objects that are close to either corner or under the bumper and can vary depending on vehicle orientation or road conditions. The distance of the image that appears on the screen is different from the actual distance. The following illustration shows the field of view that the camera provides.

A. View displayed by the camera. B. Corner of the rear bumper.

When the System Does Not Seem to Work Properly The rear vision camera system may not work properly or display a clear image if:

The RVC is turned off. See “Turning the Rear Vision Camera System On or Off” earlier in this section. It is dark. The sun or the beam of headlamps is shining directly into the camera lens. Ice, snow, mud, or anything else builds up on the camera lens. Clean the lens, rinse it with water, and wipe it with a soft cloth. The back of the vehicle is in an accident. The position and mounting angle of the camera can change or the camera can be affected. Be sure to have the camera and its position and mounting angle checked at your dealer.

Cadillac SRX Owner Manual - 2011

Black plate (47,1)

Fuel Use of the recommended fuel is an important part of the proper maintenance of this vehicle. To help keep the engine clean and maintain optimum vehicle performance, we recommend the use of gasoline advertised as TOP TIER Detergent Gasoline. Look for the TOP TIER label on the fuel pump to ensure gasoline meets enhanced detergency standards developed by auto companies. A list of marketers providing TOP TIER Detergent Gasoline can be found at www.toptiergas.com.

The eighth digit of the Vehicle Identification Number (VIN) shows the code letter or number that identifies the vehicle's engine.

Driving and Operating

9-47

The VIN is at the top left of the instrument panel. See Vehicle Identification Number (VIN) on page 12‑1. Vehicles that have a FlexFuel badge and a yellow fuel cap can use either unleaded gasoline or ethanol fuel containing up to 85% ethanol (E85). See Fuel E85 (85% Ethanol) on page 9‑50. For all other vehicles, use only the unleaded gasoline described under Recommended Fuel on page 9‑48.

Cadillac SRX Owner Manual - 2011

Black plate (48,1)

9-48

Driving and Operating

Recommended Fuel If the vehicle has the 3.0L V6 engine (VIN Code Y), use regular unleaded gasoline with a posted octane rating of 87 or higher. If the octane rating is less than 87, an audible knocking noise, commonly referred to as spark knock, might be heard when driving. If this occurs, use a gasoline rated at 87 octane or higher as soon as possible. If heavy knocking is heard when using gasoline rated at 87 octane or higher, the engine needs service.

Gasoline Specifications (U.S. and Canada Only) At a minimum, gasoline should meet ASTM specification D 4814 in the United States or CAN/CGSB‐3.5 or 3.511 in Canada. Some gasolines contain an octane-enhancing additive called methylcyclopentadienyl manganese tricarbonyl (MMT). We recommend against the use of gasolines containing MMT. See Fuel Additives on page 9‑49 for additional information.

If the vehicle has the 2.8L V6 engine (VIN Code 6), use premium unleaded gasoline with a posted octane rating of 91 or higher. For best performance, use premium unleaded gasoline with a posted octane rating of 93. In an emergency, you can use regular unleaded gasoline with an octane rating of 87 or higher. If 87 octane fuel is used, do not perform any aggressive driving maneuvers such as wide open throttle applications. You might also hear audible spark knock during acceleration. Refill the tank with premium fuel as soon as possible to avoid damaging the engine. If heavy knocking is heard when using gasoline rated at 91octane or higher, the engine needs service.

Cadillac SRX Owner Manual - 2011

Black plate (49,1)

Driving and Operating

9-49

California Fuel Requirements If the vehicle is certified to meet California Emissions Standards, it is designed to operate on fuels that meet California specifications. See the underhood emission control label. If this fuel is not available in states adopting California Emissions Standards, the vehicle will operate satisfactorily on fuels meeting federal specifications, but emission control system performance might be affected. The malfunction indicator lamp could turn on and the vehicle might fail a smog‐check test. See Malfunction Indicator Lamp on page 5‑19. If this occurs, return to your authorized dealer for diagnosis. If it is determined that the condition is caused by the type of fuel used, repairs might not be covered by the vehicle warranty.

Fuels in Foreign Countries Never use leaded gasoline or any other fuel not recommended in the previous text on fuel. Costly repairs caused by use of improper fuel would not be covered by the vehicle warranty. To check the fuel availability, ask an auto club, or contact a major oil company that does business in the country where you will be driving.

Fuel Additives To provide cleaner air, all gasolines in the United States are now required to contain additives that help prevent engine and fuel system deposits from forming, allowing the emission control system to work properly. In most cases, nothing should have to be added to the fuel.

However, some gasolines contain only the minimum amount of additive required to meet U.S. Environmental Protection Agency regulations. To help keep fuel injectors and intake valves clean and avoid problems due to dirty injectors or valves, look for gasoline that is advertised as TOP TIER Detergent Gasoline. Look for the TOP TIER label on the fuel pump to ensure gasoline meets enhanced detergency standards developed by the auto companies. A list of marketers providing TOP TIER Detergent Gasoline can be found at www.toptiergas.com.

Cadillac SRX Owner Manual - 2011

Black plate (50,1)

9-50

Driving and Operating

For customers who do not use TOP TIER Detergent Gasoline regularly, one bottle of GM Fuel System Treatment PLUS, added to the fuel tank at every engine oil change, can help clean deposits from fuel injectors and intake valves. GM Fuel System Treatment PLUS is the only gasoline additive recommended by General Motors. It is available at your dealer. Gasolines containing oxygenates, such as ethers and ethanol, and reformulated gasolines might be available in your area. We recommend that you use these gasolines, if they comply with the specifications described earlier. However, E85 (85% ethanol) and other fuels containing more than 10% ethanol must not be used in vehicles that were not designed for those fuels.

Notice: This vehicle was not designed for fuel that contains methanol. Do not use fuel containing methanol. It can corrode metal parts in the fuel system and also damage plastic and rubber parts. That damage would not be covered under the vehicle warranty. Some gasolines that are not reformulated for low emissions can contain an octane-enhancing additive called methylcyclopentadienyl manganese tricarbonyl (MMT); ask the attendant where you buy gasoline whether the fuel contains MMT. We recommend against the use of such gasolines. Fuels containing MMT can reduce spark plug life and affect emission control system performance. The malfunction indicator lamp might turn on. If this occurs, return to your dealer for service.

Fuel E85 (85% Ethanol) Vehicles that have a FlexFuel badge and a yellow fuel cap can use either unleaded gasoline or ethanol fuel containing up to 85% ethanol (E85). For all other vehicles, use only the unleaded gasoline described under Recommended Fuel on page 9‑48. We encourage the use of E85 in vehicles that are designed to use it. The ethanol in E85 is a “renewable” fuel, meaning it is made from renewable sources such as corn and other crops. Many service stations will not have an 85% ethanol fuel (E85) pump available. The U.S. Department of Energy has an alternative fuels website (www.afdc.energy.gov/afdc/ locator/stations/) that can help you find E85 fuel. Those stations that do have E85 should have a label indicating ethanol content. Do not use the fuel if the ethanol content is greater than 85%.

Cadillac SRX Owner Manual - 2011

Black plate (51,1)

At a minimum, E85 should meet ASTM Specification D 5798. By definition, this means that fuel labeled E85 will have an ethanol content between 70% and 85%. Filling the fuel tank with fuel mixtures that do not meet ASTM specifications can affect driveability and could cause the malfunction indicator lamp to come on. To ensure quick starts in the wintertime, the E85 fuel must be formulated properly for your climate according to ASTM specification D 5798. If you have trouble starting on E85, it could be because the E85 fuel is not properly formulated for your climate. If this happens, switching to gasoline or adding gasoline to the fuel tank can improve starting. For good starting

and heater efficiency below 0°C (32°F), the fuel mix in the fuel tank should contain no more than 70% ethanol. It is best not to alternate repeatedly between gasoline and E85. If you do switch fuels, it is recommended that you add as much fuel as possible — do not add less than 11 L (3 gal) when refueling. You should drive the vehicle immediately after refueling for at least 11 km (7 mi) to allow the vehicle to adapt to the change in ethanol concentration. E85 has less energy per liter (gallon) than gasoline, so you will need to refill the fuel tank more often when using E85 than when you are using gasoline. See Filling the Tank on page 9‑52.

Driving and Operating

9-51

Notice: Some additives are not compatible with E85 fuel and can harm the vehicle's fuel system. Do not add anything to E85. Damage caused by additives would not be covered by the vehicle warranty. Notice: This vehicle was not designed for fuel that contains methanol. Do not use fuel containing methanol. It can corrode metal parts in the fuel system and also damage plastic and rubber parts. That damage would not be covered under the vehicle warranty.

Cadillac SRX Owner Manual - 2011

Black plate (52,1)

9-52

Driving and Operating

Filling the Tank

{ WARNING

Fuel vapor burns violently and a fuel fire can cause bad injuries. To help avoid injuries to you and others, read and follow all the instructions on the fuel pump island. Turn off the engine when refueling. Do not smoke near fuel or when refueling the vehicle. Do not use cellular phones. Keep sparks, flames, and smoking materials away from fuel. Do not leave the fuel pump unattended when refueling the vehicle. This is against the law in some places. Do not re-enter the vehicle while pumping fuel. Keep children away from the fuel pump; never let children pump fuel.

Lamp could turn on. See Malfunction Indicator Lamp on page 5‑19.

{ WARNING

Fuel can spray out on you if you open the fuel cap too quickly. If you spill fuel and then something ignites it, you could be badly burned. This spray can happen if the tank is nearly full, and is more likely in hot weather. Open the fuel cap slowly and wait for any hiss noise to stop. Then unscrew the cap all the way.

Be careful not to spill fuel. Do not top off or overfill the tank and wait a few seconds after you have finished pumping before removing the nozzle. Clean fuel from painted surfaces as soon as possible. See Exterior Care on page 10‑105. When replacing the fuel cap, turn it clockwise until it clicks once. Make sure the cap is fully installed.

The tethered fuel cap is located behind a hinged fuel door on the passenger side of the vehicle. To open the fuel door, push the rearward center edge in and release and it will open. To remove the fuel cap, turn it slowly counterclockwise. While refueling, hang the tethered fuel cap from the hook on the fuel door. When reinstalling the cap, turn it clockwise until it clicks once, otherwise the Malfunction Indicator

Cadillac SRX Owner Manual - 2011

Black plate (53,1)

Driving and Operating

9-53

WARNING (Continued)

. Bring the fill nozzle in contact

with the inside of the fill opening before operating the nozzle. Contact should be maintained until the filling is complete.

. Do not smoke while

pumping fuel.

. Do not use a cellular phone

while pumping fuel.

The diagnostic system can determine if the fuel cap has been left off or improperly installed. This would allow fuel to evaporate into the atmosphere. See Malfunction Indicator Lamp on page 5‑19.

{ WARNING If a fire starts while you are refueling, do not remove the nozzle. Shut off the flow of fuel by shutting off the pump or by notifying the station attendant. Leave the area immediately.

Notice: If a new fuel cap is needed, be sure to get the right type of cap from your dealer. The wrong type of fuel cap might not fit properly, might cause the malfunction indicator lamp to light, and could damage the fuel tank and emissions system. See Malfunction Indicator Lamp on page 5‑19.

Filling a Portable Fuel Container

{ WARNING

Never fill a portable fuel container while it is in the vehicle. Static electricity discharge from the container can ignite the fuel vapor. You can be badly burned and the vehicle damaged if this occurs. To help avoid injury to you and others:

. Dispense fuel only into

approved containers.

. Do not fill a container while

it is inside a vehicle, in a vehicle's trunk, pickup bed, or on any surface other than the ground.

(Continued)

Cadillac SRX Owner Manual - 2011

Black plate (54,1)

9-54

Driving and Operating

Towing

General Towing Information Only use towing equipment that has been designed for the vehicle. Contact your dealer or trailering dealer for assistance with preparing the vehicle for towing a trailer. See the following trailer towing information in this section:

For information on driving while towing a trailer, see “Driving Characteristics and Towing Tips.”

For maximum vehicle and trailer weights, see “Trailer Towing.” For information on equipment to tow a trailer, see “Towing Equipment.”

For information on towing a disabled vehicle, see Towing the Vehicle on page 10‑101. For information on towing the vehicle behind another vehicle such as a motor home, see Recreational Vehicle Towing on page 10‑101.

Driving Characteristics and Towing Tips

{ WARNING

The driver can lose control when pulling a trailer if the correct equipment is not used or the vehicle is not driven properly. For example, if the trailer is too heavy, the brakes may not work well — or even at all. The driver and passengers could be seriously injured. The vehicle may also be damaged; the resulting repairs would not be covered by the vehicle warranty. Pull a trailer only if all the steps in this section have been followed. Ask your dealer for advice and information about towing a trailer with the vehicle.

Cadillac SRX Owner Manual - 2011

Black plate (55,1)

Driving and Operating

9-55

The vehicle can tow a trailer when equipped with the proper trailer towing equipment. For trailering capacity, see Trailer Towing on page 9‑58. Trailering changes handling, acceleration, braking, durability and fuel economy. With the added weight, the engine, transmission, wheel assemblies and tires are forced to work harder and under greater loads. The trailer also adds wind resistance, increasing the pulling requirements. For safe trailering, correctly use the proper trailering equipment. The following information has important trailering tips and rules for your safety and that of your passengers. Read this section carefully before pulling a trailer.

Pulling a Trailer Here are some important points:

There are many laws, including speed limit restrictions that apply to trailering. Check for legal requirements.

. Do not tow a trailer at all during the first 1 600 km (1,000 miles) the new vehicle is driven. The engine, axle or other parts could be damaged.

. During the first 800 km

(500 miles) that a trailer is towed, do not drive over 80 km/h (50 mph) and do not make starts at full throttle. This reduces wear on the vehicle.

The vehicle can tow in D (Drive). Use a lower gear if the transmission shifts too often. . Do not use the Fuel Economy

Mode when towing.

. Obey speed limit restrictions.

Do not drive faster than the maximum posted speed for trailers, or no more than 90 km/h (55 mph), to reduce wear on the vehicle.

Cadillac SRX Owner Manual - 2011

Black plate (56,1)

9-56

Driving and Operating

Driving with a Trailer Towing a trailer requires experience. Get familiar with handling and braking with the added trailer weight. The vehicle is now longer and not as responsive as the vehicle is by itself. Check all trailer hitch parts and attachments, safety chains, electrical connectors, lamps, tires and mirror adjustments. If the trailer has electric brakes, start the vehicle and trailer moving and then apply the trailer brake controller by hand to be sure the brakes are working. During the trip, check regularly to be sure that the load is secure, and the lamps and trailer brakes are working properly.

Towing with a Stability Control System When towing, the sound of the stability control system might be heard. The system is reacting to the vehicle movement caused by the trailer, which mainly occurs during cornering. This is normal when towing heavier trailers. Following Distance Stay at least twice as far behind the vehicle ahead as you would when driving the vehicle without a trailer. This can help to avoid situations that require heavy braking and sudden turns. Passing More passing distance is needed when towing a trailer. Because the rig is longer, it is necessary to go farther beyond the passed vehicle before returning to the lane.

Backing Up Hold the bottom of the steering wheel with one hand. To move the trailer to the left, move that hand to the left. To move the trailer to the right, move your hand to the right. Always back up slowly and, if possible, have someone guide you. Making Turns Notice: Making very sharp turns while trailering could cause the trailer to come in contact with the vehicle. The vehicle could be damaged. Avoid making very sharp turns while trailering. When turning with a trailer, make wider turns than normal so the trailer will not strike soft shoulders, curbs, road signs, trees or other objects. Use the turn signal well in advance and avoid jerky or sudden maneuvers.

Cadillac SRX Owner Manual - 2011

Black plate (57,1)

The vehicle can tow in D (Drive). Use a lower gear if the transmission shifts too often. When towing at high altitude on steep uphill grades, engine coolant boils at a lower temperature than at normal altitudes. If the engine is turned off immediately after towing at high altitude on steep uphill grades, the vehicle could show signs similar to engine overheating. To avoid this, let the engine run while parked, preferably on level ground, with the transmission in P (Park) for a few minutes before turning the engine off. If the overheat warning comes on, see Engine Overheating on page 10‑24.

Turn Signals When Towing a Trailer The turn signal indicators on the instrument panel flash whenever signaling a turn or lane change. Properly hooked up, the trailer lamps also flash, telling other drivers the vehicle is turning, changing lanes or stopping. When towing a trailer, the arrows on the instrument panel flash for turns even if the bulbs on the trailer are burned out. Check occasionally to be sure the trailer bulbs are still working. Driving on Grades Reduce speed and shift to a lower gear before starting down a long or steep downgrade. If the transmission is not shifted down, the brakes might have to be used so much that they would get hot and no longer work well.

Driving and Operating

9-57

Parking on Hills

{ WARNING

Parking the vehicle on a hill with the trailer attached can be dangerous. If something goes wrong, the rig could start to move. People can be injured, and both the vehicle and the trailer can be damaged. When possible, always park the rig on a flat surface.

If parking the rig on a hill: 1. Press the brake pedal, but do not shift into P (Park) yet. Turn the wheels into the curb if facing downhill or into traffic if facing uphill.

2. Have someone place chocks

under the trailer wheels.

3. When the wheel chocks are in place, release the brake pedal until the chocks absorb the load.

Cadillac SRX Owner Manual - 2011

Black plate (58,1)

9-58

Driving and Operating

4. Reapply the brake pedal.

Then apply the parking brake and shift into P (Park).

5. Release the brake pedal. Leaving After Parking on a Hill 1. Apply and hold the brake pedal

while you:

Start the engine. Shift into a gear. Release the parking brake.

2. Let up on the brake pedal. 3. Drive slowly until the trailer is

clear of the chocks.

4. Stop and have someone pick up

and store the chocks.

Maintenance When Trailer Towing The vehicle needs service more often when pulling a trailer. See this manual's Maintenance Schedule or index for more information. Things that are especially important in trailer operation are automatic

transmission fluid, engine oil, axle lubricant, belts, cooling system and brake system. Inspect these before and during the trip. Check periodically to see that all hitch nuts and bolts are tight. Engine Cooling When Trailer Towing The cooling system may temporarily overheat during severe operating conditions. See Engine Overheating on page 10‑24.

Trailer Towing Before pulling a trailer, there are three important considerations that have to do with weight:

The weight of the trailer The weight of the trailer tongue The total weight on the vehicle's tires

Weight of the Trailer How heavy can a trailer safely be? It depends on how the rig is used. For example, speed, altitude, road grades, outside temperature and how much the vehicle is used to pull a trailer are all important. It can depend on any special equipment on the vehicle, and the amount of tongue weight the vehicle can carry. See “Weight of the Trailer Tongue” later in this section for more information. Maximum trailer weight is calculated assuming only the driver is in the tow vehicle and it has all the required trailering equipment. The weight of additional optional equipment, passengers and cargo in the tow vehicle must be subtracted from the maximum trailer weight. Use the following chart to determine how much the vehicle can weigh, based upon the vehicle model and options.

Cadillac SRX Owner Manual - 2011

Black plate (59,1)

Vehicle

Maximum Trailer

Weight

GCWR*

Maximum Tongue

Weight

Driving and Operating

9-59

1 134 kg (2,500 lbs)

3 725 kg (8,212 lbs)

1 588 kg (3,500 lbs)

2.8L Engine, AWD 3.0L Engine, FWD without Trailering Package 3.0L Engine, FWD with Trailering Package 3.0L Engine, AWD without Trailering Package 3.0L Engine, AWD with Trailering Package *The Gross Combination Weight Rating (GCWR) is the total allowable weight of the completely loaded vehicle and trailer including any passengers, cargo, equipment and conversions. The GCWR for the vehicle should not be exceeded.

3 725 kg (8,212 lbs)

3 640 kg (8,025 lbs)

3 270 kg (7,209 lbs)

1 588 kg (3,500 lbs)

3 185 kg (7,022 lbs)

1 588 kg (3,500 lbs)

1 134 kg (2,500 lbs)

159 kg (350 lbs)

159 kg (350 lbs)

159 kg (350 lbs)

159 kg (350 lbs)

113 kg (250 lbs)

Ask your dealer for trailering information or advice. See Customer Assistance Offices (U.S. and Canada) on page 13‑5
or Customer Assistance Offices (Mexico) on page 13‑6 for more information.

Weight of the Trailer Tongue The tongue load (A) of any trailer is an important weight to measure because it affects the total gross weight of the vehicle. The Gross Vehicle Weight (GVW) includes the curb weight of the vehicle, any cargo carried in it, and the people who will be riding in the vehicle.

If there are a lot of options, equipment, passengers or cargo in the vehicle, it will reduce the tongue weight the vehicle can carry, which will also reduce the trailer weight the vehicle can tow. If towing a trailer, the tongue load must be added to the GVW because the vehicle will be carrying that weight, too.

Cadillac SRX Owner Manual - 2011

Black plate (60,1)

9-60

Driving and Operating

See Vehicle Load Limits on page 9‑12 for more information about the vehicle's maximum load capacity.

If a weight-carrying hitch or a weight-distributing hitch is being used, the trailer tongue (A) should weigh 10‐15 percent of the total loaded trailer weight (B).

Total Weight on the Vehicle's Tires Be sure the vehicle's tires are inflated to the upper limit for cold tires. These numbers can be found on the Certification label or see Vehicle Load Limits on page 9‑12
for more information. Make sure not to go over the GVW limit for the vehicle, or the GAWR, including the weight of the trailer tongue. If using a weight distributing hitch, make sure not to go over the rear axle limit before applying the weight distribution spring bars.

After loading the trailer, weigh the trailer and then the tongue, separately, to see if the weights are proper. If they are not, adjustments might be made by moving some items around in the trailer. Trailering may be limited by the vehicle's ability to carry tongue weight. Tongue weight cannot cause the vehicle to exceed the GVWR (Gross Vehicle Weight Rating) or the RGAWR (Rear Gross Axle Weight Rating). The effect of additional weight may reduce the trailering capacity more than the total of the additional weight. It is important that the vehicle does not exceed any of its ratings — GCWR, GVWR, RGAWR, Maximum Trailer Rating or Tongue Weight. The only way to be sure it is not exceeding any of these ratings is to weigh the vehicle and trailer.

Cadillac SRX Owner Manual - 2011

Black plate (61,1)

Towing Equipment

Hitch Cover

Hitches It is important to have the correct hitch equipment. Crosswinds, large trucks going by and rough roads are a few reasons why the right hitch is needed.

The rear bumper on the vehicle is not intended for hitches. Do not attach rental hitches or other bumper-type hitches to it. Use only a frame-mounted hitch that does not attach to the bumper.

. Will any holes be made in the body of the vehicle when the trailer hitch is installed? If there are, then be sure to seal the holes later when the hitch is removed. If the holes are not sealed, dirt, water, and deadly carbon monoxide (CO) from the exhaust can get into the vehicle. See Engine Exhaust on page 9‑24.

The vehicle may have a hitch cover. To remove the hitch cover: 1. Turn the fasteners on

the lower tabs 90 degrees counterclockwise.

2. Lift the lower edge of the cover

about 45 degrees.

3. Pull the cover downward

to disengage the upper attachments.

Driving and Operating

9-61

To reinstall the hitch cover: 1. Hold the cover at a 45 degree angle to the vehicle and push the upper tabs in the hitch cover into the slots in the fascia.

2. Move the bottom of the cover

forward until the lower tabs line up with the lower fascia slots.

3. Snap the hitch cover into place

by pushing the upper corners forward.

4. Turn the fasteners on the lower

tabs 90 degrees clockwise to lock the cover in place.

Safety Chains Always attach chains between the vehicle and the trailer. Cross the safety chains under the tongue of the trailer to help prevent the tongue from contacting the road if it becomes separated from the hitch. Always leave just enough slack so the rig can turn. Never allow safety chains to drag on the ground.

Cadillac SRX Owner Manual - 2011

Black plate (62,1)

9-62

Driving and Operating

Trailer Brakes A loaded trailer that weighs more than 450 kg (1,000 lbs) needs to have its own brake system that is adequate for the weight of the trailer. Be sure to read and follow the instructions for the trailer brakes so they are installed, adjusted and maintained properly. Because the vehicle has anti-lock brakes, do not tap into the vehicle's brake system. If you do, both brake systems will not work well, or at all. Trailer Wiring Harness All of the electrical circuits required for the trailer lighting system can be accessed at a connector mounted to the frame, behind the rear bumper cover.

Trailer Sway Control (TSC) The vehicle has a Trailer Sway Control (TSC) feature as part of the StabiliTrak system. If TSC detects that the trailer is swaying, the vehicle's brakes are automatically applied.

When TSC is applying the brakes, the TCS/StabiliTrak indicator light flashes to notify the driver to reduce speed. See Traction Control System (TCS)/StabiliTrak® Light on page 5‑25. If the trailer continues to sway, StabiliTrak will reduce engine torque to help slow the vehicle. TSC will not function if StabiliTrak is turned off.

Conversions and Add-Ons

Add-On Electrical Equipment Notice: Do not add anything electrical to the vehicle unless you check with your dealer first. Some electrical equipment can damage the vehicle and the damage would not be covered by the vehicle's warranty. Some add-on electrical equipment can keep other components from working as they should. Add-on equipment can drain the vehicle's 12‐volt battery, even if the vehicle is not operating. The vehicle has an airbag system. Before attempting to add anything electrical to the vehicle, see Servicing the Airbag-Equipped Vehicle on page 3‑43 and Adding Equipment to the Airbag-Equipped Vehicle on page 3‑44.

Cadillac SRX Owner Manual - 2011

Black plate (1,1)

Vehicle Care

General Information

General Information . . . . . . . . . . 10-2
California Proposition

65 Warning . . . . . . . . . . . . . . . . . 10-3

California Perchlorate

Materials Requirements . . . . 10-3

Accessories and

Modifications . . . . . . . . . . . . . . . 10-3

Vehicle Checks Doing Your Own

Service Work . . . . . . . . . . . . . . . 10-4
Hood . . . . . . . . . . . . . . . . . . . . . . . . 10-5
Engine Compartment

Overview . . . . . . . . . . . . . . . . . . . 10-6
Engine Cover . . . . . . . . . . . . . . . 10-10
Engine Oil . . . . . . . . . . . . . . . . . . 10-10
Engine Oil Life System . . . . . 10-14
Automatic Transmission

Fluid . . . . . . . . . . . . . . . . . . . . . . 10-16
Engine Air Cleaner/Filter . . . . 10-16

Cooling System . . . . . . . . . . . . 10-19
Engine Coolant . . . . . . . . . . . . . 10-20
Engine Overheating . . . . . . . . 10-24
Power Steering Fluid . . . . . . . 10-26
Washer Fluid . . . . . . . . . . . . . . . 10-26
Brakes . . . . . . . . . . . . . . . . . . . . . 10-27
Brake Fluid . . . . . . . . . . . . . . . . . 10-28
Battery . . . . . . . . . . . . . . . . . . . . . 10-30
All-Wheel Drive . . . . . . . . . . . . . 10-30
Starter Switch Check . . . . . . . 10-31
Automatic Transmission Shift

Lock Control Function Check . . . . . . . . . . . . . . . . . . . . . 10-31

Ignition Transmission Lock

Check . . . . . . . . . . . . . . . . . . . . . 10-32

Park Brake and P (Park)

Mechanism Check . . . . . . . . 10-32

Wiper Blade

Replacement . . . . . . . . . . . . . . 10-33

Headlamp Aiming

Headlamp Aiming . . . . . . . . . . 10-34

Vehicle Care

10-1

Bulb Replacement

Bulb Replacement . . . . . . . . . . 10-38
Halogen Bulbs . . . . . . . . . . . . . . 10-38
High Intensity Discharge

(HID) Lighting . . . . . . . . . . . . . 10-38
Headlamps . . . . . . . . . . . . . . . . . 10-38
Fog Lamps . . . . . . . . . . . . . . . . . 10-43
Turn Signal Lamps . . . . . . . . . 10-43
Back-Up Lamps . . . . . . . . . . . . 10-45
License Plate Lamp . . . . . . . . 10-46
Replacement Bulbs . . . . . . . . . 10-47

Electrical System

Electrical System

Overload . . . . . . . . . . . . . . . . . . 10-47

Fuses and Circuit

Breakers . . . . . . . . . . . . . . . . . . 10-48

Engine Compartment Fuse

Block . . . . . . . . . . . . . . . . . . . . . 10-48

Instrument Panel Fuse

Block . . . . . . . . . . . . . . . . . . . . . 10-51

Rear Compartment Fuse

Block . . . . . . . . . . . . . . . . . . . . . 10-53

Cadillac SRX Owner Manual - 2011

Black plate (2,1)

10-2

Vehicle Care

Wheels and Tires

Tires . . . . . . . . . . . . . . . . . . . . . . . . 10-56
Tire Sidewall Labeling . . . . . . 10-57
Tire Designations . . . . . . . . . . . 10-59
Tire Terminology and

Definitions . . . . . . . . . . . . . . . . 10-60
Tire Pressure . . . . . . . . . . . . . . . 10-63
Tire Pressure for High-Speed

Operation . . . . . . . . . . . . . . . . . 10-65

Tire Pressure Monitor

System . . . . . . . . . . . . . . . . . . . 10-65

Tire Pressure Monitor

Operation . . . . . . . . . . . . . . . . . 10-67
Tire Inspection . . . . . . . . . . . . . . 10-71
Tire Rotation . . . . . . . . . . . . . . . 10-71
When It Is Time for New

Tires . . . . . . . . . . . . . . . . . . . . . . 10-72
Buying New Tires . . . . . . . . . . . 10-73
Different Size Tires and

Wheels . . . . . . . . . . . . . . . . . . . 10-75

Uniform Tire Quality

Grading . . . . . . . . . . . . . . . . . . . 10-76

General Information For service and parts needs, visit your dealer. You will receive genuine GM parts and GM-trained and supported service people. Genuine GM parts have one of these marks:

Wheel Alignment and Tire

Balance . . . . . . . . . . . . . . . . . . . 10-78
Wheel Replacement . . . . . . . . 10-78
Tire Chains . . . . . . . . . . . . . . . . . 10-79
If a Tire Goes Flat . . . . . . . . . . 10-79
Tire Sealant and

Compressor Kit . . . . . . . . . . . 10-81

Storing the Tire Sealant and

Compressor Kit . . . . . . . . . . . 10-89
Tire Changing . . . . . . . . . . . . . . 10-89
Compact Spare Tire . . . . . . . . 10-96

Jump Starting

Jump Starting . . . . . . . . . . . . . . 10-96

Towing

Towing the Vehicle . . . . . . . . 10-101
Recreational Vehicle

Towing . . . . . . . . . . . . . . . . . . . 10-101

Appearance Care

Exterior Care . . . . . . . . . . . . . . 10-105
Interior Care . . . . . . . . . . . . . . . 10-109
Floor Mats . . . . . . . . . . . . . . . . . 10-112

Cadillac SRX Owner Manual - 2011

Black plate (3,1)

California Proposition 65 Warning Most motor vehicles, including this one, contain and/or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Engine exhaust, many parts and systems, many fluids, and some component wear by-products contain and/or emit these chemicals.

California Perchlorate Materials Requirements Certain types of automotive applications, such as airbag initiators, seat belt pretensioners, and lithium batteries contained in Remote Keyless Entry transmitters, may contain perchlorate materials. Special handling may be necessary. For additional information, see www.dtsc.ca.gov/hazardouswaste/ perchlorate.

Vehicle Care

10-3

Accessories and Modifications Adding non‐dealer accessories or making modifications to the vehicle can affect vehicle performance and safety, including such things as airbags, braking, stability, ride and handling, emissions systems, aerodynamics, durability, and electronic systems like antilock brakes, traction control, and stability control. These accessories or modifications could even cause malfunction or damage not covered by the vehicle warranty.

Cadillac SRX Owner Manual - 2011

Black plate (4,1)

10-4

Vehicle Care

Damage to vehicle components resulting from modifications or the installation or use of non‐GM certified parts, including control module or software modifications, is not covered under the terms of the vehicle warranty and may affect remaining warranty coverage for affected parts. GM Accessories are designed to complement and function with other systems on the vehicle. Your GM dealer can accessorize the vehicle using genuine GM Accessories. When you go to your GM dealer and ask for GM Accessories, you will know that GM-trained and supported service technicians will perform the work using genuine GM Accessories. Also, see Adding Equipment to the Airbag-Equipped Vehicle on page 3‑44.

Vehicle Checks

Doing Your Own Service Work

{ WARNING You can be injured and the vehicle could be damaged if you try to do service work on a vehicle without knowing enough about it.

. Be sure you have sufficient

knowledge, experience, the proper replacement parts, and tools before attempting any vehicle maintenance task.

(Continued)

WARNING (Continued)

. Be sure to use the proper

nuts, bolts, and other fasteners. Metric and English fasteners can be easily confused. If the wrong fasteners are used, parts can later break or fall off. You could be hurt.

If doing some of your own service work, use the proper service manual. It tells you much more about how to service the vehicle than this manual can. To order the proper service manual, see Service Publications Ordering Information on page 13‑16.

Cadillac SRX Owner Manual - 2011

Black plate (5,1)

Vehicle Care

10-5

Hood To open the hood:

This vehicle has an airbag system. Before attempting to do your own service work, see Servicing the Airbag-Equipped Vehicle on page 3‑43. Keep a record with all parts receipts and list the mileage and the date of any service work performed. See Maintenance Records on page 11‑10.

1. Pull the release handle with the above symbol on it. It is located below the instrument panel to the left of the steering wheel.

2. Move the secondary hood release lever up to release the striker. The lever is located near the middle of the hood.

3. Lift the hood. Before closing the hood, be sure all the filler caps are on properly.

Cadillac SRX Owner Manual - 2011

Black plate (6,1)

10-6

Vehicle Care

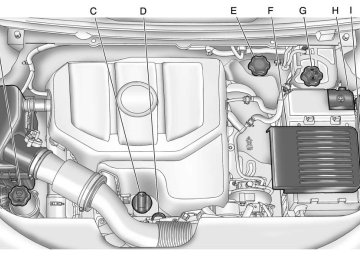

Engine Compartment Overview

2.8 L V6 Engine

Cadillac SRX Owner Manual - 2011

Black plate (7,1)

Vehicle Care

10-7

A. Engine Air Cleaner/Filter on

G. Engine Coolant Surge Tank and

page 10‑16.

B. Power Steering Reservoir and Cap. See Power Steering Fluid on page 10‑26.

C. Engine Oil Fill Cap. See Engine

Oil on page 10‑10.

D. Engine Oil Dipstick. See Engine

Oil on page 10‑10.

E. Brake Master Cylinder

Reservoir. See Brakes on page 10‑27.

F. Battery (Out of View).

See Battery on page 10‑30.

Pressure Cap. See Engine Coolant on page 10‑20.

H. Remote Positive (+) Terminal.

See Jump Starting on page 10‑96.

I. Remote Negative (−) Terminal

(Out of View). See Jump Starting on page 10‑96.

J. Engine Compartment Fuse

Block on page 10‑48.

K. Windshield Washer Fluid

Reservoir. See Washer Fluid on page 10‑26.

Cadillac SRX Owner Manual - 2011

Black plate (8,1)

10-8

Vehicle Care

3.0 L V6 Engine

Cadillac SRX Owner Manual - 2011

Black plate (9,1)

Vehicle Care

10-9

A. Engine Air Cleaner/Filter on

F. Transmission Fluid Cap

J. Remote Positive (+) Terminal.

page 10‑16.

B. Power Steering Reservoir and

Cap (Under Engine Cover). See Power Steering Fluid on page 10‑26.

C. Engine Oil Fill Cap. See Engine

and Dipstick (Out of View). See Automatic Transmission Fluid on page 10‑16.

G. Brake Master Cylinder

Reservoir. See Brakes on page 10‑27.

See Jump Starting on page 10‑96.

K. Remote Negative (−) Terminal

(Out of View). See Jump Starting on page 10‑96.

L. Engine Compartment Fuse

Oil on page 10‑10.

H. Engine Coolant Surge Tank and

Block on page 10‑48.

D. Engine Oil Dipstick (Out of

View). See Engine Oil on page 10‑10.

E. Engine Cover on page 10‑10.

Pressure Cap. See Engine Coolant on page 10‑20. Battery (Out of View). See Battery on page 10‑30.

I.

M. Windshield Washer Fluid

Reservoir. See Washer Fluid on page 10‑26.

Cadillac SRX Owner Manual - 2011

Black plate (10,1)

10-10

Vehicle Care

Engine Cover

Engine Cover (3.0 L V6)

A. Oil Fill Cap B. Engine Cover Bolt C. Engine Cover

To remove: 1. Remove the oil fill cap (A). 2. Remove the engine cover

bolt (B).

3. Raise the engine cover (C) to

release from the retainers. 4. Lift and remove the engine

cover.

5. Reverse Steps 1 through 4 to

reinstall engine cover.

Engine Oil To ensure proper engine performance and long life, careful attention must be paid to engine oil. Following these simple, but important steps will help protect your investment: . Always use engine oil approved

to the proper specification and of the proper viscosity grade. See “Selecting the Right Engine Oil” in this section.

. Check the engine oil level regularly and maintain the proper oil level. See “Checking Engine Oil” and “When to Add Engine Oil” in this section.

. Change the engine oil at the appropriate time. See Engine Oil Life System on page 10‑14.

. Always dispose of engine oil

properly. See “What to Do with Used Oil” in this section.

Cadillac SRX Owner Manual - 2011

Black plate (11,1)

Checking Engine Oil It is a good idea to check the engine oil level at each fuel fill. In order to get an accurate reading, the vehicle must be on level ground. The engine oil dipstick handle is a yellow loop. See Engine Compartment Overview on page 10‑6 for the location of the engine oil dipstick. 1.

If the engine has been running recently, turn off the engine and allow several minutes for the oil to drain back into the oil pan. Checking the oil level too soon after engine shutoff will not provide an accurate oil level reading.

2. Pull out the dipstick and clean

it with a paper towel or cloth, then push it back in all the way. Remove it again, keeping the tip down, and check the level.

When to Add Engine Oil If the oil is below the cross-hatched area at the tip of the dipstick, add 1 L (1 qt) of the recommended oil and then recheck the level. See “Selecting the Right Engine Oil” in this section for an explanation of what kind of oil to use. For engine oil crankcase capacity, see Capacities and Specifications on page 12‑2. Notice: Do not add too much oil. Oil levels above or below the acceptable operating range shown on the dipstick are harmful to the engine. If you find that you have an oil level above the operating range, i.e., the engine has so much oil that the oil level gets above the cross-hatched area that shows the proper operating range, the engine could be damaged. You should drain out the excess oil or limit driving of the vehicle and seek a service professional to remove the excess amount of oil.

Vehicle Care

10-11

See Engine Compartment Overview on page 10‑6 for the location of the engine oil fill cap. Add enough oil to put the level somewhere in the proper operating range. Push the dipstick all the way back in when through. Selecting the Right Engine Oil Selecting the right engine oil depends on both the proper oil specification and viscosity grade:

Specification (3.0L V6 Engine) Use and ask for engine oils with the dexos™ certification mark. Oils meeting the requirements of the vehicle should have the dexos certification mark on the container. This certification mark indicates that the oil has been approved to the dexos specification.

Cadillac SRX Owner Manual - 2011

Black plate (12,1)

10-12

Vehicle Care

This vehicle was filled at the factory with dexos‐approved engine oil. Notice: Use only engine oil that is approved to the dexos specification or an equivalent engine oil of the appropriate viscosity grade. Engine oils approved to the dexos specification will show the dexos symbol on the container. Failure to use the recommended engine oil or equivalent can result in engine damage not covered by the vehicle warranty. If you are unsure whether the oil is approved to the dexos specification, ask your service provider. Use of Substitute Engine Oils if dexos is unavailable: In the event that dexos‐approved engine oil is

not available at an oil change or for maintaining proper oil level, you may use substitute engine oil displaying the API Starburst symbol and of SAE 5W-30 viscosity grade. Use of oils that do not meet the dexos specification, however, may result in reduced performance under certain circumstances.

Specification (2.8L V6 Engine) Use and ask for engine oils with the dexos certification mark. Oils meeting the requirements of the vehicle should have the dexos certification mark on the container. This certification mark indicates that the oil has been approved to the dexos specification.

This vehicle was filled at the factory with dexos‐approved engine oil.

Notice: Use only engine oil that is approved to the dexos specification or an equivalent engine oil of the appropriate viscosity grade. Engine oils approved to the dexos specification will show the dexos symbol on the container. Failure to use the recommended engine oil or equivalent can result in engine damage not covered by the vehicle warranty. If you are unsure whether the oil is approved to the dexos specification, ask your service provider. Use of Substitute Engine Oils if dexos is unavailable for top-up only: Engine oil not meeting the dexos specification or equivalent should not be used for an oil change. In the event that dexos‐approved engine oil is not available for maintaining proper oil level, however, you may use substitute engine oil displaying the API Starburst symbol and of SAE 5W-30 viscosity grade.

Cadillac SRX Owner Manual - 2011

Black plate (13,1)

Extensive use of oils that do not meet the dexos specification, however, may result in reduced performance or engine damage under certain circumstances. Maintaining the proper oil level is very important. However, if you use a substitute oil for any reason, we recommend that you perform a complete oil change back to dexos as soon as possible to protect the engine and maintain the engine's peak performance.

Viscosity Grade SAE 5W-30 is the best viscosity grade for the vehicle. Do not use other viscosity oils such as SAE 10W‐30, 10W‐40, or 20W-50.

Vehicle Care

10-13

Cold Temperature Operation: In an area of extreme cold, where the temperature falls below −29°C (−20°F), an SAE 0W-30
oil should be used. An oil of this viscosity grade will provide easier cold starting for the engine at extremely low temperatures. When selecting an oil of the appropriate viscosity grade, be sure to always select an oil that meets the required specification, dexos. See “Specification” earlier in this section for more information.

Cadillac SRX Owner Manual - 2011

Black plate (14,1)

10-14

Vehicle Care

Engine Oil Additives/Engine Oil Flushes Do not add anything to the oil. The recommended oils with the dexos specification and displaying the dexos certification mark are all that is needed for good performance and engine protection. Engine oil system flushes are not recommended and could cause engine damage not covered by the vehicle warranty.

What to Do with Used Oil Used engine oil contains certain elements that can be unhealthy for your skin and could even cause cancer. Do not let used oil stay on your skin for very long. Clean your skin and nails with soap and water, or a good hand cleaner. Wash or properly dispose of clothing or rags containing used engine oil. See the manufacturer's warnings about the use and disposal of oil products. Used oil can be a threat to the environment. If you change your own oil, be sure to drain all the oil from the filter before disposal. Never dispose of oil by putting it in the trash or pouring it on the ground, into sewers, or into streams or bodies of water. Recycle it by taking it to a place that collects used oil.

Engine Oil Life System

When to Change Engine Oil This vehicle has a computer system that indicates when to change the engine oil and filter. This is based on engine revolutions and engine temperature, and not on mileage. Based on driving conditions, the mileage at which an oil change is indicated can vary considerably. For the oil life system to work properly, the system must be reset every time the oil is changed. When the system has calculated that oil life has been diminished, it indicates that an oil change is necessary. A CHANGE ENGINE OIL SOON message comes on. See Engine Oil Messages on page 5‑37. Change the oil as soon as possible within the next 1 000 km (600 mi).

Cadillac SRX Owner Manual - 2011

Black plate (15,1)

It is possible that, if driving under the best conditions, the oil life system might indicate that an oil change is not necessary for up to a year. The engine oil and filter must be changed at least once a year and at this time the system must be reset. Your dealer has trained service people who will perform this work and reset the system. It is also important to check the oil regularly over the course of an oil drain interval and keep it at the proper level. If the system is ever reset accidentally, the oil must be changed at 5 000 km (3,000 mi) since the last oil change. Remember to reset the oil life system whenever the oil is changed.

How to Reset the Engine Oil Life System Reset the system whenever the engine oil is changed so that the system can calculate the next engine oil change. To reset the system: 1. Using the DIC MENU button and

thumbwheel on the turn signal lever, display REMAINING OIL LIFE on the DIC. See Driver Information Center (DIC) on page 5‑29 and Engine Oil Messages on page 5‑37.

2. Press the SET/CLR button to

reset the oil life at 100%. Be careful not to reset the oil life display accidentally at any time other than after the oil is changed. It cannot be reset accurately until the next oil change.

Vehicle Care

10-15

The oil life system can also be reset as follows: 1. Turn the ignition on with the

engine off.

2. Fully press and release the

accelerator pedal three times within five seconds. If the CHANGE ENGINE OIL SOON message is not on, the system is reset.

The system is reset when the CHANGE ENGINE OIL SOON message is off. If the CHANGE ENGINE OIL SOON message comes back on when the vehicle is started, the engine oil life system has not been reset. Repeat the procedure.

Cadillac SRX Owner Manual - 2011

Black plate (16,1)

10-16

Vehicle Care

Automatic Transmission Fluid

How to Check Automatic Transmission Fluid It is not necessary to check the transmission fluid level. A transmission fluid leak is the only reason for fluid loss. If a leak occurs, take the vehicle to your dealer service department and have it repaired as soon as possible.

There is a special procedure for checking and changing the transmission fluid. Because this procedure is difficult, you should have this done at your dealer service department. Contact your dealer for additional information or the procedure can be found in the service manual. To purchase a service manual, see Service Publications Ordering Information on page 13‑16. Change the fluid and filter at the intervals listed in Scheduled Maintenance on page 11‑2, and be sure to use the fluid listed in Recommended Fluids and Lubricants on page 11‑7.

Engine Air Cleaner/Filter See Engine Compartment Overview on page 10‑6 for the location of the engine air cleaner/filter. When to Inspect the Engine Air Cleaner/Filter Inspect the air cleaner/filter at the scheduled maintenance intervals and replace it at the first oil change after each 80 000 km (50,000 mi) interval. See Scheduled Maintenance on page 11‑2 for more information. If driving in dusty/dirty conditions, inspect the filter at each engine oil change.

Cadillac SRX Owner Manual - 2011

Black plate (17,1)

How to Inspect the Engine Air Cleaner/Filter To inspect the air cleaner/filter, remove the filter from the vehicle and lightly shake the filter to release loose dust and dirt. If the filter remains covered with dirt, a new filter is required. Never use compressed air to clean the filter. To inspect or replace the engine air cleaner/filter: 1. Open the hood. See Hood on

page 10‑5.

2. Locate the air filter housing on the front of the passenger side of the engine compartment. See Engine Compartment Overview on page 10‑6.

3.0 L V6 Shown, 2.8 L V6 Similar

5. Lift the retaining clips (C) on the

Vehicle Care

10-17

air filter housing.

6. Turn and tilt cover slightly

upwards and slide cover away from outside edge of vehicle. Remove the air filter.

A. Air Duct Clamp B. Electrical Connectors C. Retaining Clips

3. Disconnect the outlet duct by

loosening the air duct clamp (A).

4. Disconnect the electrical

connectors (B).

A. Cover Cut Outs B. Air Filter Tabs

Cadillac SRX Owner Manual - 2011

Black plate (18,1)

10-18

Vehicle Care

7. To install the air filter, place filter inside box where the pleats fit in between the tabs located inside the lower box. Ensure that the cover cut outs (A) on both sides match the air filter tabs (B) on both sides.

8. Replace air cleaner cover by

inserting tabs appropriately into slots. Lower cover to meet bottom of box. Place clips on retention features and clip closed.

9. Retighten the air duct clamp. 10. Reconnect the electrical

connectors.
